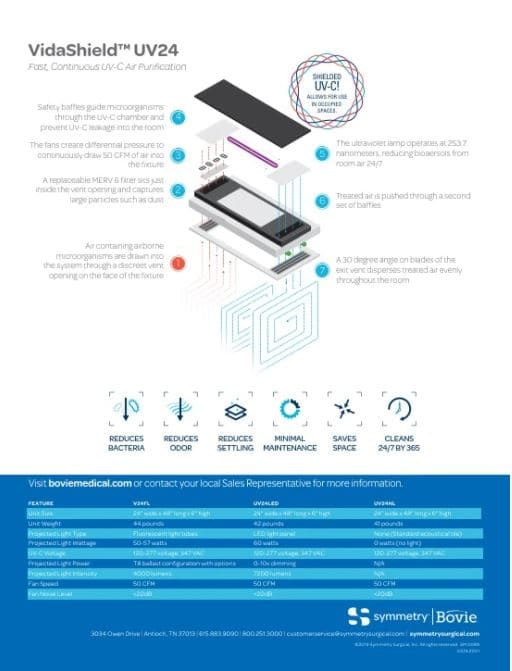

HOW UV24 WORKS:
- Air containing airborne microorganisms is drawn into system through a discreet vent opening on the face of the fixture.
- A replaceable MERV6 filter sits just inside the vent opening and captures large particulates such as dust.
- The fans create differential pressure to continuously draw 50 CFM of air into fixture.
- Safety baffles guide microorganisms through the UV-C chamber and prevent UV-C leakage into the room.
- The ultraviolet lamp operates at 253.7 nanometers, reducing bioaerosols from room air 24/7.
- Treated air is pushed through second set of baffles.
- A 30 degree angle on blades of the exit vent disperses treated air evenly throughout the room.

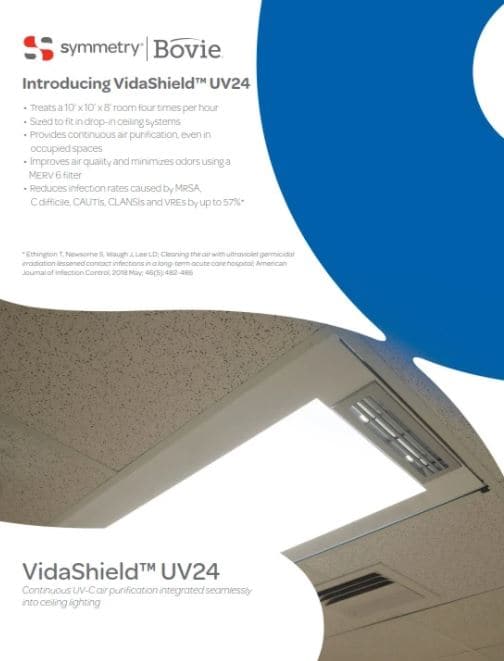

FEATURES

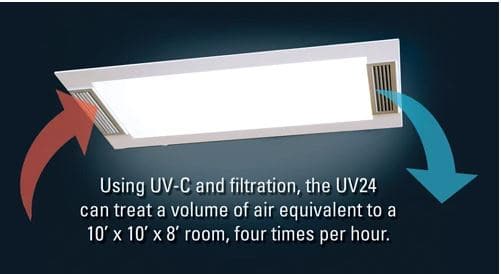

- Treats a 10’ x 10’ x 8’ room four times per hour
- Sized to fit in drop-in ceiling systems
- Provides continuous air purification, even in occupied spaces
- Improves air quality and minimizes odors using a MERV 6 filter
- Reduces infection rates caused by MRSA, C difficile, CAUTIs, CLANSIs and VREs by up to 57%*
- Safety baffles guide microorganisms through the UV-C chamber and prevent UV-C leakage into the room
- The fans create differential pressure to continuously draw 50 CFM of air into the fixture
- A replaceable MERV 6 filter sits just inside the vent opening and captures large particles such as dust
- Air containing airborne microorganisms are drawn into the system through a discreet vent opening on the face of the fixture
- The ultraviolet lamp operates at 253.7 nanometers, reducing bioaersols from room air 24/7
- Treated air is pushed through a second set of baffles
- A 30 degree angle on blades of the exit vent disperses treated air evenly throughout the room
SPECIFICATIONS

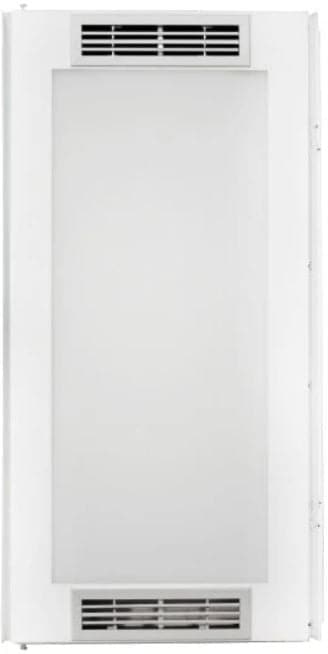

- Unit Size 24” wide x 48” long x 6” high
- Unit Weight 42 pounds
- Projected Light Type LED Light Panel
- Projected Light Wattage 60 watts (no light)
- UV-C Voltage 120-277 voltage, 347 VAC
- Projected Light Power 0-10V dimming
- Projected Light Intensity 7200 lumens
- Fan Speed 50 CFM
- Fan Noise Level <20dB
