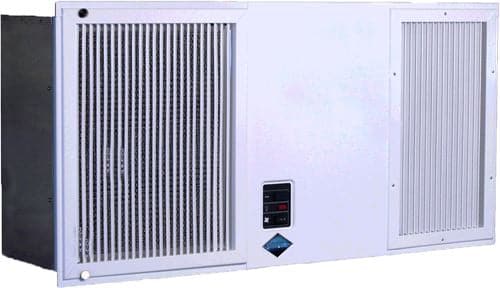

Lakeair LAFC dual blower electrostatic air purifier / smoke eater MADE IN USA
A cigar lounge generates large volumes of smoke. Environments like this require extra strength products to keep the air clean. The LAFC-DB (dual blower) provides more clean air where it’s needed. Our electrostatic cells remove 97% of particulate to.1 microns. The LAFC electrostatic cell creates a low-pressure drop. It is a free-flowing electronic air filter. Our technology allows for more air cleaning cycles. This provides high volume air movement with minimal noise. This unit is designed to be flush-mounted, but can ceiling hung.
The LAFC-Dual Blower provides more clean air for extra smokey and dust environments. This unit is especially suited for smokey applications like cigar bars and other heavily polluted areas. This unit features an electrostatic filter cell that removes 97% or more of airborne particles down to 0.1 microns.
Large Volume Smoke Removal
A cigar lounge generates large volumes of smoke. Environments like this require extra strength products to keep the air clean. The LAFC-DB (dual blower) provides more clean air where its needed. The LAFC-DB provides clean air with lower cost of upkeep. Our electrostatic cells remove 97% of particulate as small as .1 microns. The LAFC electrostatic cell creates pressure drop. It is a free flowing electronic air filter. Our technology allows more air turn over. This design provides high volume air movement with minimal noise. The centrifugal blower allows two distinct cleaning modes.
A washable pre-filter protects the cell from debris. This filter (part# 490128) is made of aluminum mesh . It’s useable life is up to 2 years. It should be replaced when it become worn. The standard carbon filter for this unit is part# 499072 . The activated carbon filter removes harmful VOCs and odors from the air. More odor control and VOC removal is possible with the L-Super Carbon (part# 499039). This filter contains 30 times more activated carbon.
This supercharged product fits into a 2′ x 4′ ceiling grid. It requires just 11 inches of space between the drop and natural Ceiling. The LAFC intake panel is hinged to allow easy access for cleaning and maintenance. The dual louvered clean air delivery panel allow for variable yet smooth air flow.
The Cleaning Process
Dirty air is brought to the LAFC-DB. The larger particles are caught in the pre-filter screen. Smaller particles pass through to the collecting section. In the electronic cell they are given an electrical charge. The “charged” particles continue to the collecting section of the cell. Here they are attracted to a series of aluminum plates. They are tapped until you wash them away.
LakeAires Electrostatic cells have over 13,000 sq. inches of collection area. They provide superior air filtration and contaminant collection. LakeAir cells are made of high quality non corrosive materials. The cells will withstand many cleanings. Our electrostatic cells are built to last. Many cells have been in service for over 20 years. Our cells use smaller tolerances and lower voltage to decrease ozone emissions. Common electrostatic precipitators use up to 20k dc volts. LakeAir systems use lower voltage to limit ozone. Ozone is a byproduct of the cleaning process. LakeAir electrostatic air purifiers emitted 0.048 ppm of ozone in the latest test. This is less than state of California standard.
- capacity 600 -950 cfm*
- unit size 47.75 x 23.75 x 11″
- unit weight 95 lb.
- sound level 44-52 db (A)
- particle removal: 97% of airborne particles as small as .1 microns
- Power 120v, AC/60Hz/5 amps -or-
- 230v, AC/50/60 Hz/2.5 amps
- shipping weight 125 lbs.
- activated carbon after filter
- washable permanent electronic filter cell
- 7 Year Limited Warranty
