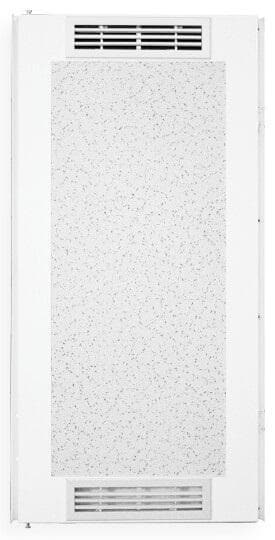

VidaShield by Bovie 2x4 Troffer, UV Overhead Air Purification No Light, UV24NL

by FSGUV
Sold out
$1,700.26
SKU UV24NL

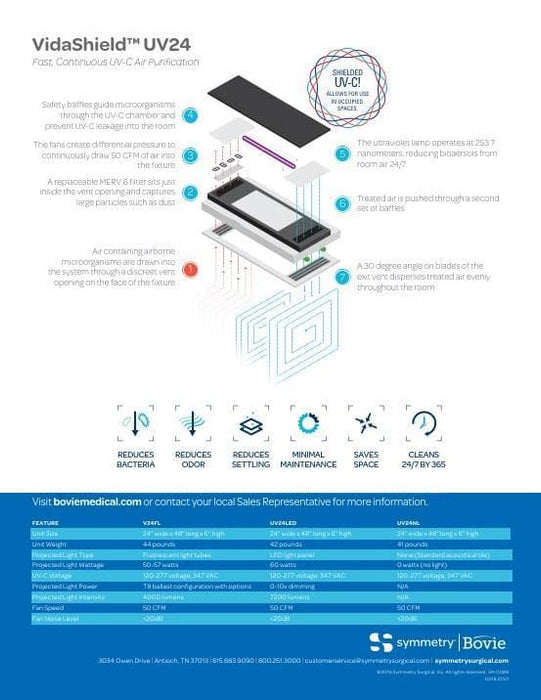

  • HOW UV24 WORKS:

    1. Air containing airborne microorganisms is drawn into system through a discreet vent opening on the face of the fixture.
    2. A replaceable MERV6 filter sits just inside the vent opening and captures large par
ticulates such as dust.
  • The fans create differential pressure to continuously draw 50 CFM of air into fixture.
  • Safety baffles guide microorganisms through the UV-C chamber and prevent UV-C leakage into the room.
  • The ultraviolet lamp operates at 253.7 nanometers, reducing bioaerosols from room air 24/7.
  • Treated air is pushed through second set of baffles.
  • A 30 degree angle on blades of the exit vent disperses treated air evenly throughout the room.

    • FEATURES

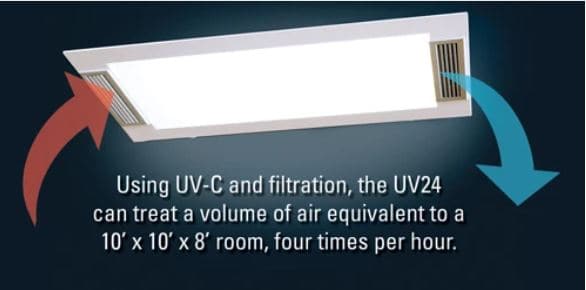

    • Treats a 10ā€™ x 10ā€™ x 8ā€™ room four times per hour
    • Sized to fit in drop-in ceiling systems
    • Provides continuous air purification, even in occupied spaces
    • Improves air quality and minimizes odors using a MERV 6 filter
    • Reduces infection rates caused by MRSA, C difficile, CAUTIs, CLANSIs and VREs by up to 57%*
    • Safety baffles guide microorganisms through the UV-C chamber and prevent UV-C leakage into the room
    • The fans create differential pressure to continuously draw 50 CFM of air into the fixture
    • A replaceable MERV 6 filter sits just inside the vent opening and captures large particles such as dust
    • Air containing airborne microorganisms are drawn into the system through a discreet vent opening on the face of the fixture
    • The ultraviolet lamp operates at 253.7 nanometers, reducing bioaersols from room air 24/7
    • Treated air is pushed through a second set of baffles
    • A 30 degree angle on blades of the exit vent disperses treated air evenly throughout the room

    SPECIFICATIONS

    • Unit SizeĀ 24ā€ wide x 48ā€ long x 6ā€ high
    • Unit WeightĀ 41 pounds
    • Projected Light TypeĀ None (Standard acoustical tile)
    • Projected Light WattageĀ 0 watts (no light)
    • UV-C VoltageĀ 120-277 voltage, 347 VAC
    • Projected Light PowerĀ N/A
    • Projected Light IntensityĀ N/A
    • Fan SpeedĀ 50 CFM
    • Fan Noise LevelĀ <20dB

    Ā DOCUMENTATION
